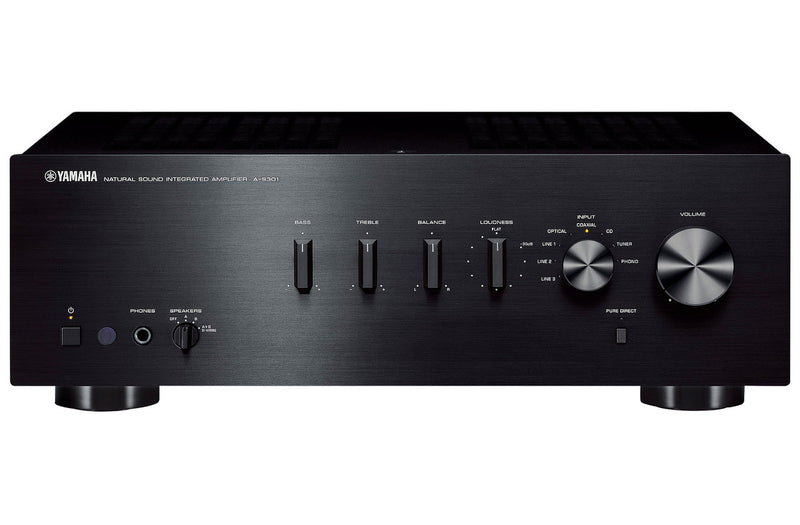

Yamaha AS301B Integrated Amplifier in Black
Designed for excellent sound quality, with a beautiful appearance. An integrated amplifier with the advantage of digital input.
- ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
- - I/O (input to output) Direct Symmetrical Design
- - ART (Anti-Resolution and Tough) Base
- - Custom-made power transformer / 6,800uF block capacitors / Aluminum-extruded heat sinks
- 95W x 2 (max), 60W x 2 (RMS) high power output
- Pure Direct Mode for Greater Sound Purity
- Continuous Variable Loudness Control
- Digital audio inputs for TV or Blu-ray Player
- Simple yet sophisticated design (aluminium front panel and knobs)
- Auto Power Standby
SPECIFICATION
| Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) |
60 W + 60 W (0.019% THD) |
| Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) |
95 W + 95 W |
| High Dynamic Power/Channel (8/6/4/2 ohms) |
100/120/140/150 W |
| Damping Factor |
210 |
| Frequency Response |
10 Hz-100 kHz +/-1.0 dB |
| Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) |
0.019% (50 W/8 ohms) |
| Signal-to-Noise Ratio (CD) |
99dB (input shorted, 200 mV) |

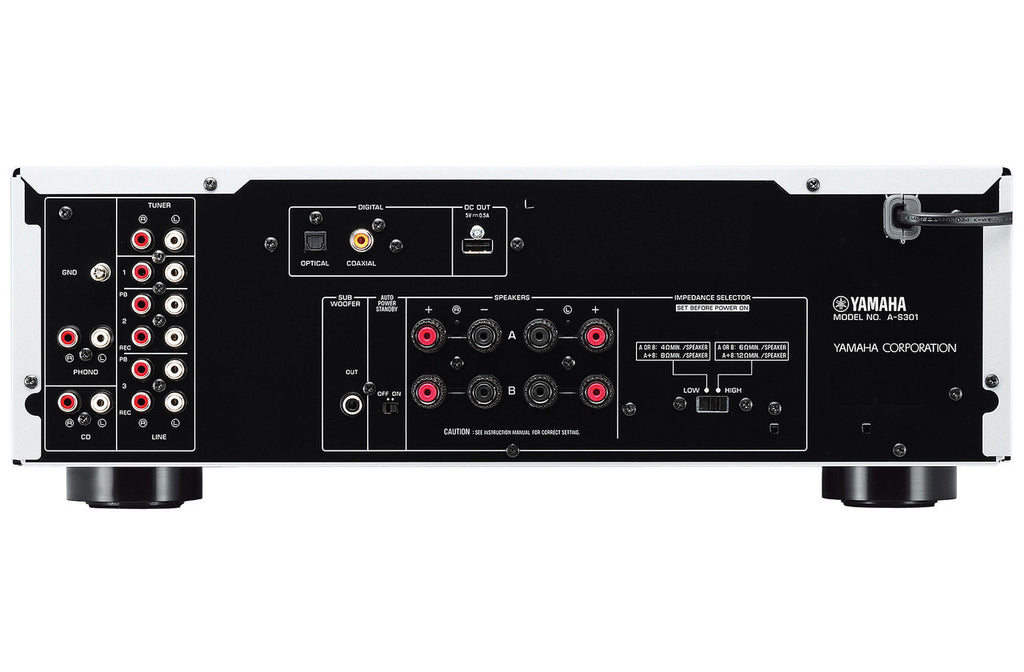

| Audio In / Out |
8 / 2 |
| Digital Input |
Yes (optical / coaxial) |
| Subwoofer Out |
Yes |
| DC out |
Yes |
| Pure Direct |
Yes |
| ToP-ART |
Yes |
| Standby Power Consumption |
0.5W |
| Power Management (Auto Power Standby) |
Yes |
| Dimensions (W x H x D) |
435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4” |
| Weight |
9.0 kg; 19.8 lbs. |
