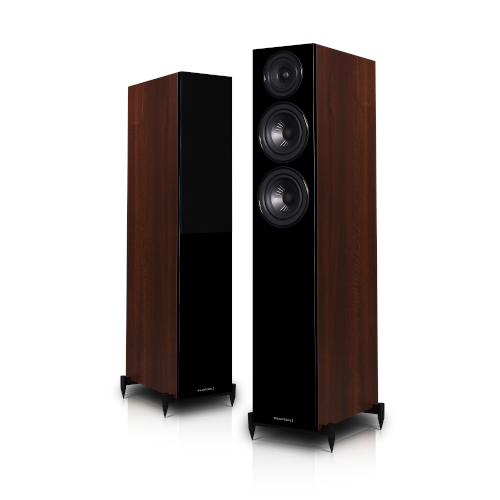

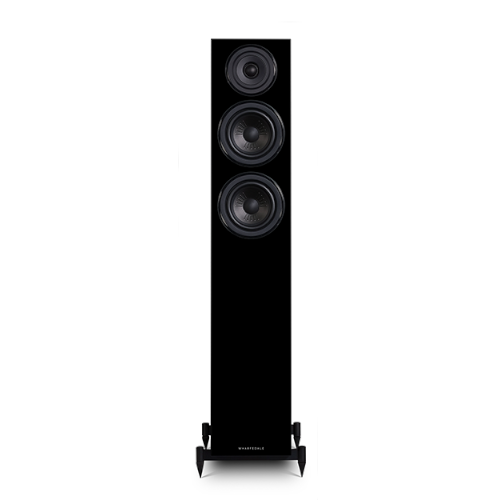

Wharfedale Diamond 12.4 Floor standing Speaker (pair) Walnut PearlThe powerhouse model of the Wharfedale DIAMOND 12 series, the DIAMOND 12.4 will fil the room and get your chest-pounding with its largest model in the series.
For larger, more powerful systems and cinema-style home theatre experiences, the DIAMOND 12.4 will fill your room with an impactful, immersive performance.
Configured in a 2.5 way system with exception crossover technology, the DIAMOND 12.4 utilises dual 150mm (6.5”) KlarityTM drivers for impactful yet refined mid-range and bass frequencies, while the 25mm (1”) dome tweeter delivers open and smoothly extended high frequencies.
Klarity Affords focus
NEW Klarity cone material, which was made from a belnd of polyproplene and mica adds sturdyness to the model to reduce flexing, to enable a lightweight cone with high rigidity, low colouration and lighting-fast response.
The DIAMOND 12.1 features a high-performance 120mm Klarity driver for execeptional timing and refined bass. The outstanding 25mm woven polyester dome tweeter delivers open and smoothly extended high frequencies.
Low Colour and Expression
The Karity cone is fitted with a low-damping surround, which gives both low colouration and expressive dynamics. As by similating many different kinds of cone shapes and adding ribs, more support is provided, a falt curve was achieved without restoring to a high damping surround, thereby striking the ideal balance.
A Magnet Of Forces
A perision-made magnet system with an aluminuim compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to a laack of distortion and intermodulation generated by the motor system.
Specification

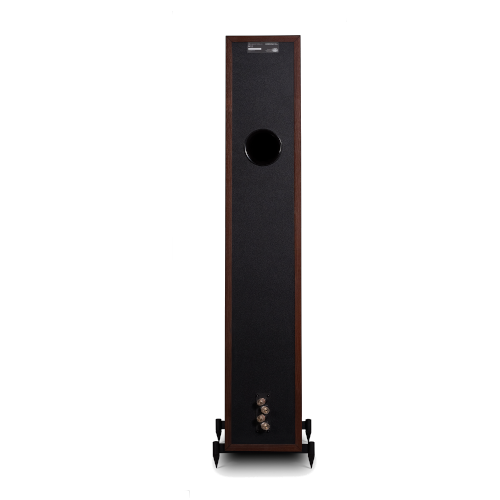

Enclosure type bass reflex
Bass driver 6.5"(150mm) advanced PP Cone
Midrange driver 6.5"(150mm) advanced PP Cone
Treble driver 1"(25mm) Textile Dome
AV shield No
Sensitivity(2.83V @ 1m) 89dB
Recommended amplifier power 30-200W
Peak SPL 102dB
Nominal impedance 8Ω Compatible
Minimum impedance 5Ω
Frequency response(+/-3dB) 40Hz ~ 20kHz
Bass extension(-6dB) 35Hz
Crossover frequency 2.1kHz
Cabinet Volume (in litres) 40.8L
Dimensions ( H x W x D ) (1100+50) x 200 x (350+28) mm
Net weight 22.4kg/pcs
