Vogels Quick TVM 1645 Full-Motion TV Wall Mount for TVs from 40 to 77 inches
Extreme full-motion TV wall mount for TVs from 40 to 77 inches
The QUICK Full-Motion+ TV wall mount can be turned up to 180° and tilted up to 15°. This means that you can enjoy your TV from virtually anywhere in the room. What's more, this TV wall mount takes less than 30 minutes to install. The QUICK Full-Motion+ TV wall mount is suitable for TVs from 40 to 77 inches and weighing up to 35 kg.
Easy installation in three steps
Thanks to the unique EasyFIX™ system, you can install your QUICK Full-Motion TV wall mount in just three steps. Your TV will be ready to watch in no more than 30 minutes. And it's no problem if your TV is mounted slightly crooked. You can also adjust your TV after installation.
Everything to hand, so convenient
Vogel's makes sure you can get to work straight away. In addition to the TV wall mount, the packaging also includes a drilling template, screws, Fischer® DuoPower plugs, a spirit level and cable ties to bind your cables together securely. Mark out your first drill hole easily, using the free DrillRight™ AR App. You can find clear installation instructions in the Quick Installation Guide. You can also view the detailed manual or the installation video online.
Guaranteed safety
Vogel's doesn't compromise on safety. Every QUICK Full-Motion+ TV wall mount is tested at three times its maximum weight capacity and is TÜV-certified. All of our TV wall mounts meet the highest safety requirements. There is a good reason why you get a 5-year warranty on your QUICK Full-Motion+ TV wall mount.
Specifications
Turn your TV up to 180° thanks to long arms of 60 cm
Secure tilting up to 15°
Easy to level, even after installation
Cable straps included
Free spirit level included
Guarantee: 5 years
TÜV certified: Yes
Product size: L
Colour: Black
Min. screen size (inch) 40
Max. screen size (inch) 77
Hole pattern (VESA)
100 mm x 100 mm
100 mm x 200 mm
200 mm x 100 mm
200 mm x 200 mm
200 mm x 300 mm
300 mm x 200 mm
300 mm x 300 mm
400 mm x 200 mm
400 mm x 300 mm
400 mm x 400 mm
500 mm x 200 mm
500 mm x 300 mm
500 mm x 400 mm
600 mm x 200 mm
600 mm x 300 mm
600 mm x 400 mm

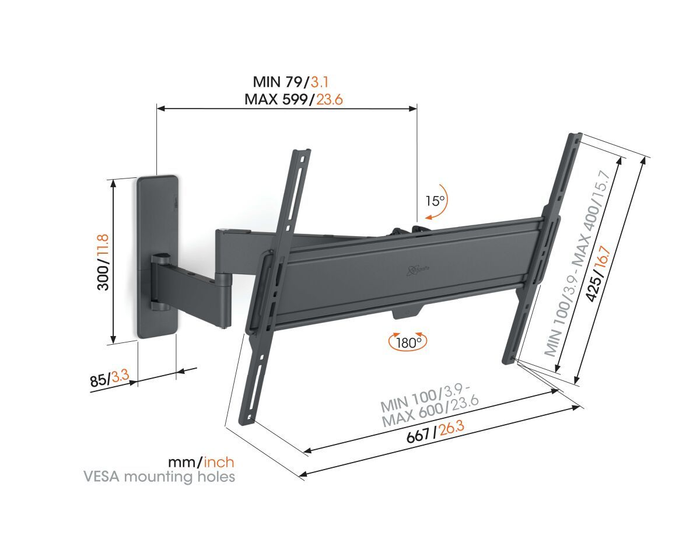

Min. distance to the wall (mm) 79
Max. distance to the wall (mm) 599
Max. weight load (kg) 35
Number of pivot points 3
Turn Up to 180°
Tilt up to 15°
What's in the box
Wall mount
Cable straps
Wall mounting kit with fischer® Duo Power plugs
TV fasteners kit
Spirit level
Quick Installation Guide
DrillRight™ AR app
