Vogels Quick TVM 1615 Tilting TV Wall Mount for TVs from 40 to 77 inches
Tilting TV wall mount for TVs from 40 to 77 inches
Want to hang your TV a bit higher on the wall and still enjoy watching it? This QUICK Tilt TV wall mount is exactly what you are looking for. You can install it extremely quickly and easily. In no more than 20 minutes, your TV is firmly in place. You can then tilt the TV 5°, 10° or 15° to set the ideal viewing angle. The TV wall mount is suitable for TVs from 40 to 77 inches and weighing up to 35 kg.
Installed in just three steps
Installing a QUICK Tilt TV wall mount is easy thanks to the unique EasyFIX™ system. Installation consists of just three steps. You can mount your TV on the wall in max. 20 minutes.
Mounting materials included
Your QUICK Tilt TV wall mount comes with all the mounting materials you need to get started right away: drilling template, screws and Fischer® DuoPower plugs. We've even thought to include a spirit level. It is built into the QUICK Tilt TV wall mount. This enables you to mount your TV perfectly straight. You can easily mark out the first drilling hole using our free DrillRight™ AR App.
Read how to install your QUICK Tilt TV wall mount in the Quick Installation Guide. If you would rather view the detailed manual or the installation video, you can find them online.
Safety first

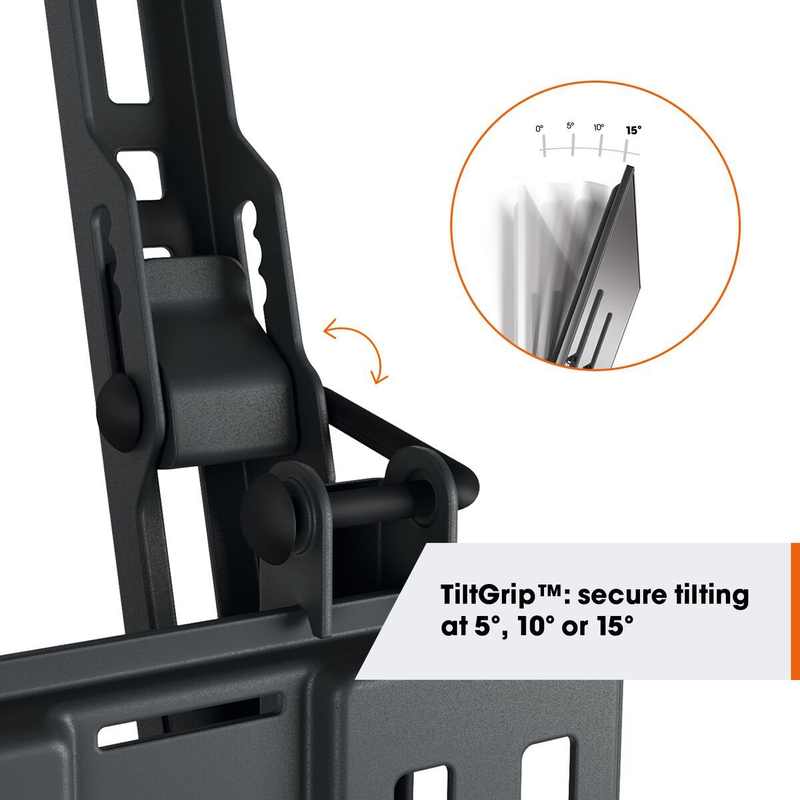

QUICK Tilt TV wall mounts are TÜV-certified and comply with the strictest safety requirements. They are tested at no less than three times their maximum weight capacity. In addition, QUICK Tilt TV wall mounts feature the SoftLock™ system to safely secure your TV to the wall mount. The TiltGrip™ system ensures that the wall mount is securely fixed in any position. The QUICK Tilt wall mount comes with a 5-year warranty.
Specifications
Guarantee: 5 years
TÜV certified: Yes
Product size; L
Colour: Black
Min. screen size (inch) 40
Max. screen size (inch) 77

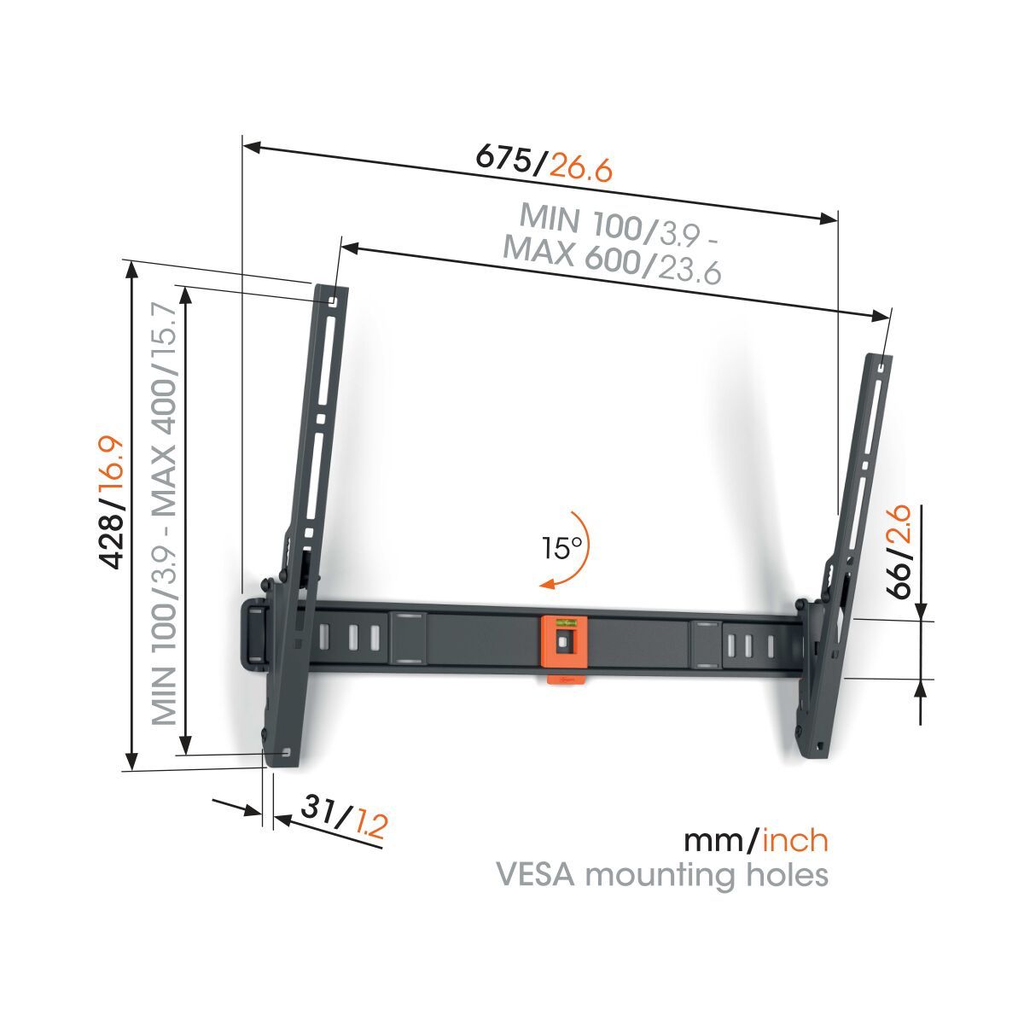

Hole pattern (VESA)
100 mm x 100 mm
100 mm x 200 mm
200 mm x 100 mm
200 mm x 200 mm
200 mm x 300 mm
300 mm x 200 mm
300 mm x 300 mm
400 mm x 200 mm
400 mm x 300 mm
400 mm x 400 mm
500 mm x 200 mm
500 mm x 300 mm
500 mm x 400 mm
600 mm x 200 mm
600 mm x 300 mm
600 mm x 400 mm
Min. distance to the wall (mm) 31
Max. weight load (kg) 35
Tilt up to 15°
What's in the box
Wall mount
Wall mounting kit with fischer® Duo Power plugs
TV fasteners kit
Spirit level
Quick Installation Guide
DrillRight™ AR app
Drilling templateVogels, TVM 1615, Tilting TV Wall Mount, TVs 40 to 77 inches, quick tvm 1615
