Monitor Audio W1M Creator Series In-Wall Speaker Single

Monitor Audio W1M Creator Series In-Wall Speaker Single

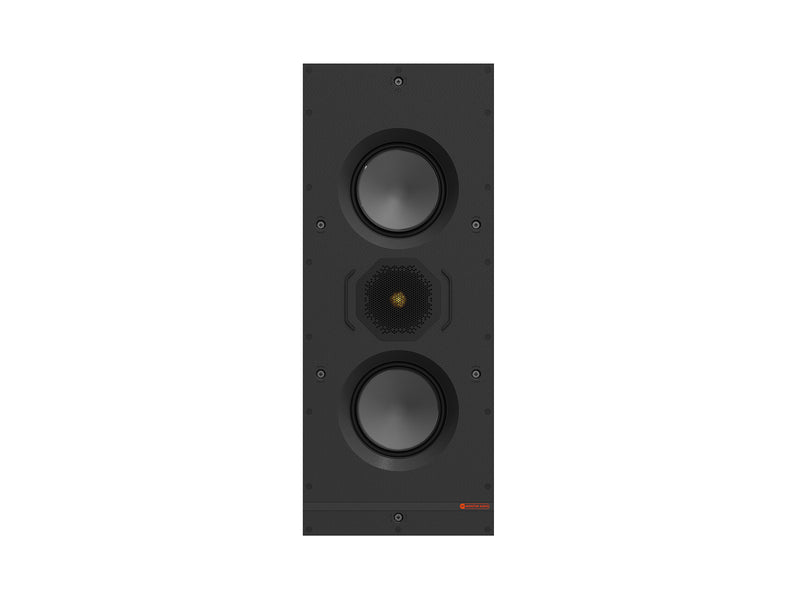

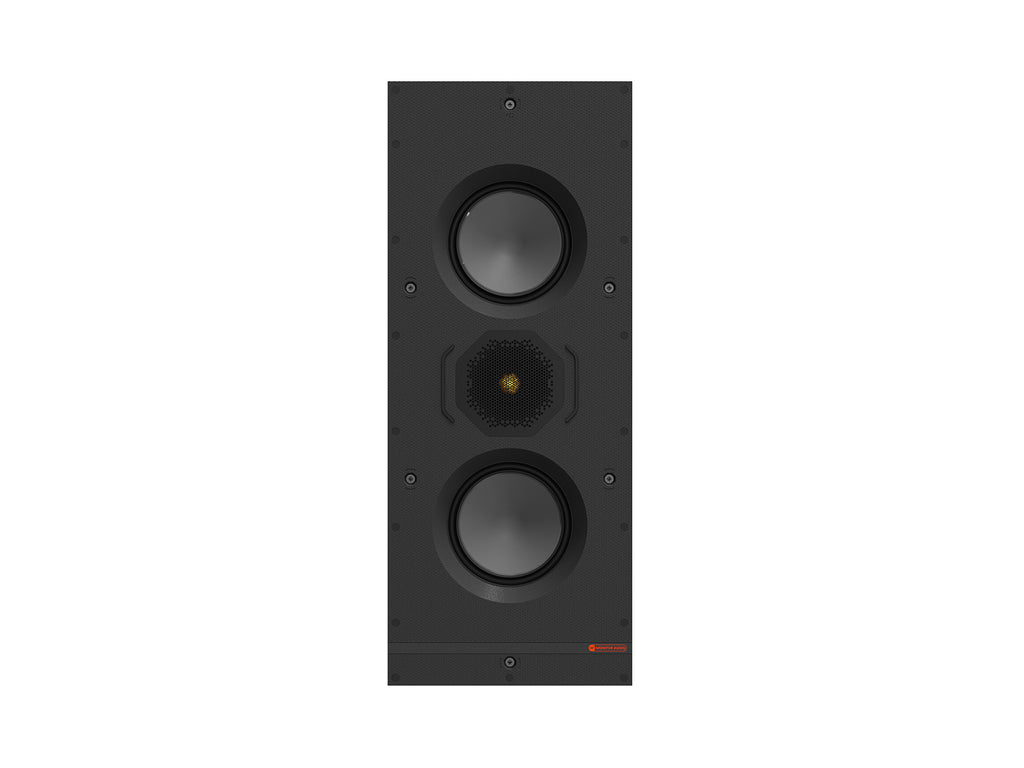

Introducing the versatile Tier 1 in-wall loudspeaker, a medium-sized marvel that combines simplicity with solid acoustic performance. This two-way model features two C-CAM mid-bass drivers and a C-CAM tweeter, offering a cost-effective solution for installations where product simplicity and robust sound quality are paramount. With a cut-out dimension of 527 x 198mm, installation is a breeze, enhanced by the revolutionary patented Quick-Link speaker cable connector and advanced Tri-Grip II, ensuring quick, reliable, and robust fitting.

Crafted for optimal cost-effective installations, this Tier 1 in-wall loudspeaker delivers a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The integration of both elements within a single design results in improved clarity, wider dispersion, and clear, lifelike high-fidelity sound – characteristic of the quality expected from any Monitor Audio passive box loudspeaker.

With a generous cut-out dimension of 527 x 198 mm, the Quik-Link speaker cable connector revolutionizes the installation process, while the evolved Tri-Grip ensures a secure, reliable, and robust fitment. Elevate your audio experience with the Tier 1 in-wall loudspeaker, where simplicity meets superior sound quality. Upgrade your space with Monitor Audio's commitment to excellence in audio engineering!

Key Features

• Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
• Two-way design
• 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
• 2 x 5" (127 mm) C-CAM mid-bass driver for clear mid-range and full bass
• Patented Quik-Link speaker cable connector for quicker installation
• Tri-Grip II for easy and secure fitment

• Enclosure Type: Open

• Output: Mono

• Power Type: Passive

• Weight Each (Kg): 3.4


• Visible Colour: White

• Visible Shape: Rectangular


• Cutout Dimensions (mm): 527 x 198

• Mounting Depth (mm): 85

• Overall Depth (mm): 90

• Overall Dimensions (mm): 540 x 211


• Compatible Amplifier (Watts RMS): 30 - 110

• Frequency range (Hz): 40 - 30000

• Nominal Impedance (Ω): 6

• Max Power High (Watts): 75

• Sensitivity (dB): 87

• Sound Pressure (dB): 113


• Bass: 2
• Biggest Driver Size (mm): 127
• Tweeter: 1
