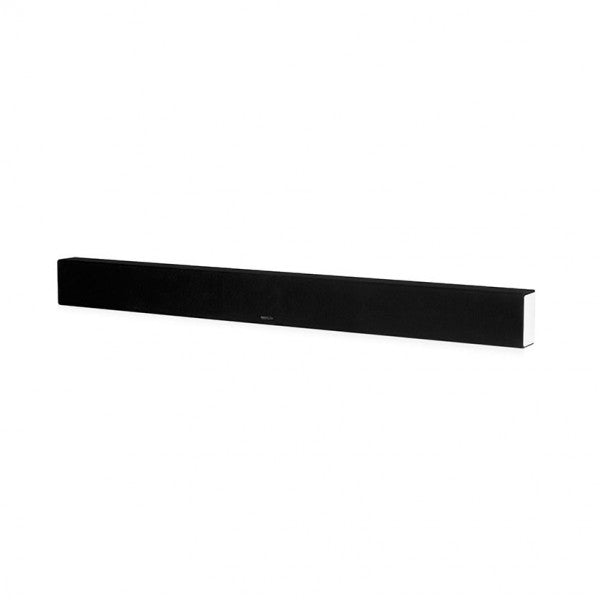

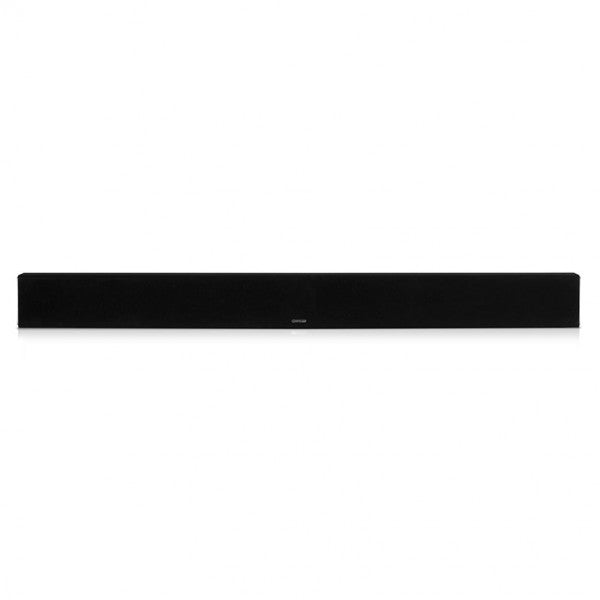

Monitor Audio SB4 Passive Soundbar in Black
Monitor Audio SB4 Passive Soundbar, designed to provide a balanced audio solution for 70 inch screens or larger. This stylish passive soundbar is ideal to deliver performance in media room applications.
The SB-4 incorporates a series of technical features and designs which demonstrate Monitor Audio’s attention to detail and quality.

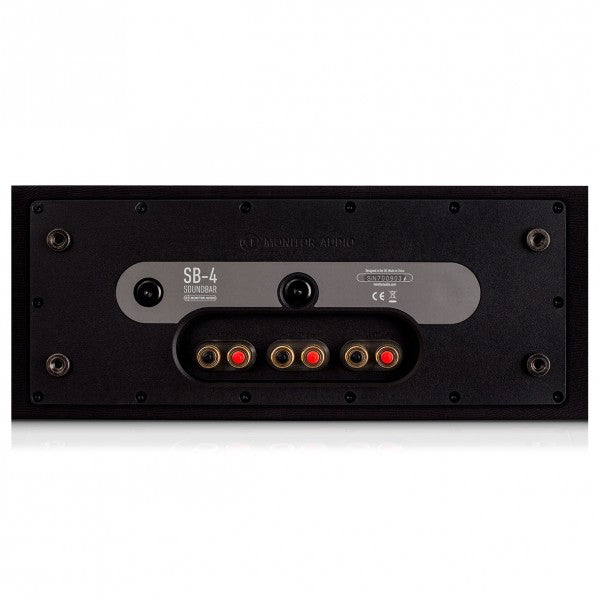

With High quality and low profile binding posts provide an easy and trouble free connection, the terminals recessed neatly to enable a flush to wall installation. The terminal panel houses standard fixing points compatible with SANUS TV mounts, with many options for TV and wall installation. Wall mounting possible using Monitor Audio’s low-profile wall mount bracket with cable access, pre-alignment and fixing template.
Features
MDF construction, braced for additional rigidity
Through-bolt driver fixing provides mechanical and enhanced mid-band clarity.
Acoustically open, black cloth finish with solid brushed aluminium trims
High quality crossovers and low loss laminated steel core inductors
Can fit SANUS TV mounting systems
Optional sturdy wall bracket with cable whole access and template installation
Low-profile silicon rubber feet integrated for secure cabinet top placement
Specification
Frequency Response (-3 dB)
70 Hz – 30 kHz
Sensitivity (1W@1M)
87 dB
Nominal Impedance
8 ohms
Power Handling (RMS)
80 W
System Power Handling (RMS)
100 (High pass filter set to 100 Hz)
Recommended Amplifier Requirements
30 – 100 W
Crossover Frequency
80 — 120 Hz
Maximum SPL
104 (108.8 all channels driven)
Bass Alignment
Left and Right Channels: 1 x Auxiliary Bass Reflex (ABR) Loading.
Centre Channel: 2 x Auxiliary Bass Reflex (ABR) Loading
Drive Unit Complement
All Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions: (H x W x D) (Including Feet)
147 x 1562 x 92 mm (513/16 x 611/2 x 35/8")
External Dimensions (Including Bracket (H x W x D))
145 x 1562 x 100 mm (53/4 x 611/2 x 315/16")
Bracket
BSB
Weight
12 kg (26 lb 7 oz)
