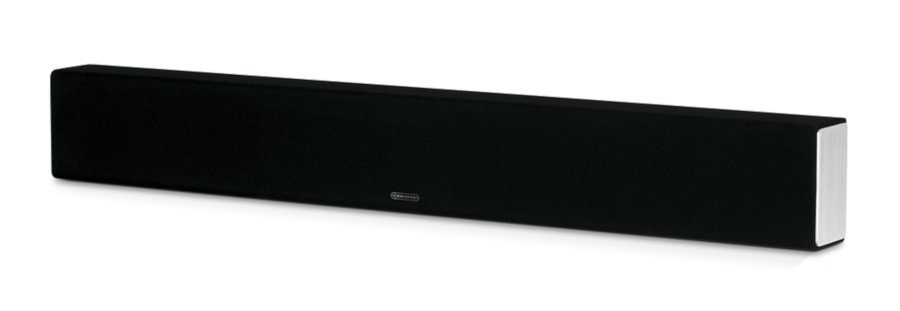

Monitor Audio SB-2 Passive Soundbar in Black

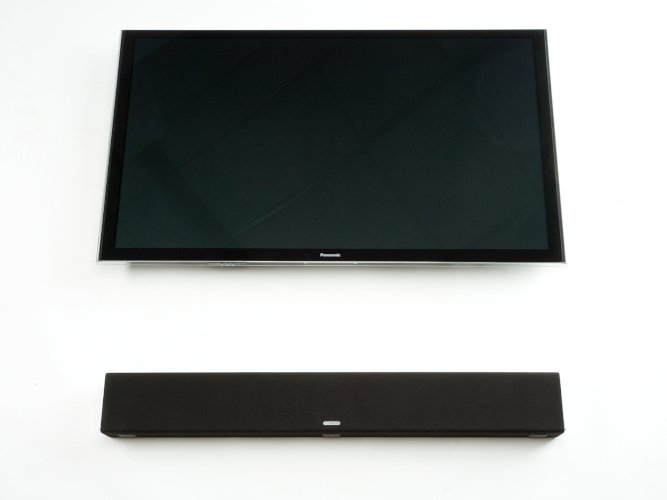

Monitor Audio SB2 Passive Soundbar, this compact SB2 is engineered to be integrated with 50-60 inch TVs, featuring three separate driver arrays for left, right and centre channels in a single cabinet.
It employs a 4 inch C-CAM mid-bass, 1 inch C-CAM tweeter and a sealed ABR driver per section.
In large rooms, the SB2 can be used with Monitor Audio Subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV’s sound system
Features
Bass/Mid driver per channel C-CAM
C-CAM gold dome tweeters per channel
Bass Reflex per channel
Three separate driver arrays for left, centre, right channels in a single cabinet

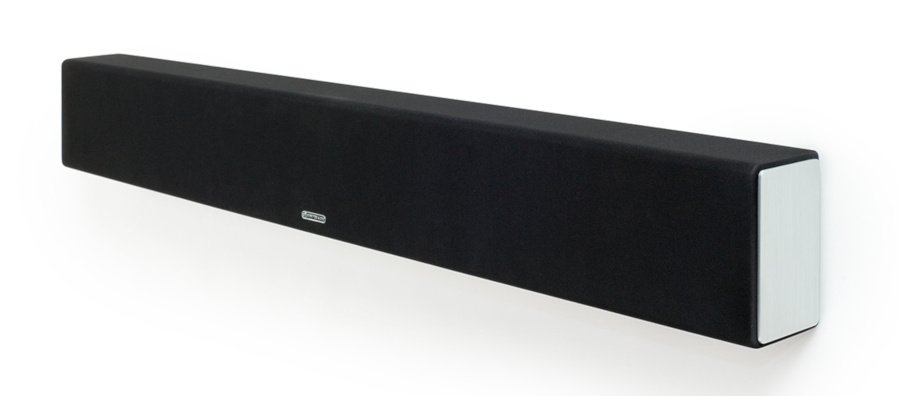

Dedicated wall bracket
Integrated silicon feet provide a secure cabinet top alternative
Specification
Frequency Response (-3 dB)
90 Hz – 30 kHz
Sensitivity (1W@1M)
84 dB
Nominal Impedance
8 ohms
Power Handling (RMS)
40 W
System Power Handling (RMS)
100 (High pass filter set to 100 Hz)
Recommended Enclosure
30 — 100 W
Crossover Frequency
80 — 120 Hz
Maximum SPL
104 (108.8 all channels driven)
Bass Alignment
3 x Auxiliary Bass Reflex (ABR) Loading
Drive Unit Complement
3 x 4" (100 mm) C-CAM cone bass/mid driver
3 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions: (H x W x D) (Including Feet)
147 x 1107 x 93 mm (513/16 x 439/16 x311/16")
External Dimensions (Including Bracket (H x W x D))
145 x 1107 x 100 mm (511/16 x 439/16 x 315/16")
Bracket
BSB
Weight
7.64 kg (16 lb 12 oz)
