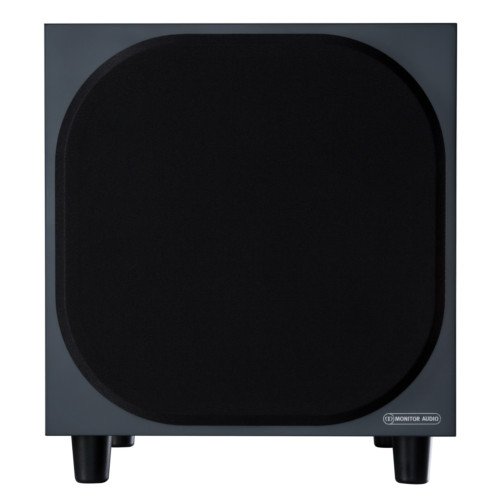

Monitor Audio Bronze W10 Subwoofer Black 6G including 5 Year WarrantyWith deep and refined bass notes, the Bronze W10 is a must have to any addition to your speaker setup as every soundscape is effortlessly reinforced by designed subwoofer.
With the Bronze W10’s long throw 10 inch C-CAM Subwoofer driver, it combines the auxillary bass radiator to bring vivid realism to any performance.
With acoustically improved driver and bass radiator, it reduces the moving masses and tunes the compliances in the system to improve the transient response. Kick drumsand explosions now have much more punch and precision. Reduced moving mass and improved rubber feet allows more energy to be transmitted directly into the room rather than being lost through vibrations through the floor and walls.
Features
• Long-throw 10" (250 mm) driver featuring ‘dished’ C-CAM
• 10" (250 mm) flat panel Auxiliary Bass Radiator (ABR) positioned underneath the unit
• Class D amplifier with high current Switch Mode Power Supply (SMPSU)
Specifications
System Format Long-throw 10" driver featuring ‘dished’ C-CAM cone. 10" flat panel ABR (Auxiliary Bass Radiator). 18 mm M.D.F. internally braced construction
Lower Frequency Limit -3 dB @ 33 Hz / -10 dB @ 28 Hz (Free Field) Default preset: Music, -3 dB @ 29 Hz / -10 dB @ 25 Hz (In Room)
Upper Frequency Limit -6 dB @ 150 Hz
Drive Unit Complement 1 x 250 mm (10") C-CAM subwoofer driver featuring a 2" long throw voice coil
Linear Driver Excursion 17 mm peak to peak
Amplifier Output 220 W
Amplifier Classification Class D with high current Switch mode power supply (SMPSU)
Phase Control 0 Degrees & 180 Degree pure Invert
Low Pass Filter Alignment 2nd order (12 dB/Octave), from 40 Hz to 120 Hz
Equalisation DSP 3 pre-set modes: Music, Movie, Impact
Auto Sensing Line Level >3mV. Auto Standby feature after 20 mins
Audio Input/Outputs LFE unbalanced input RCA Stereo unbalanced inputs RCA
Input Impedance 20 kOhms input impedance
12 V Trigger 3.5 mm mono mini-jack. 6 V threshold
Electrical Certifications CE / CB / ETL / Fcc / CCC / ErP (Energy saving compliant)
Mains Input Voltage 100 – 120 Vac 50 – 60 Hz / 220 – 240 Vac 50 – 60 Hz (Manually selected)
Power Consumption Maximum 300 W, Standby <0.5 W (ErP compliance)
Fuse Type 20 mm T4AL 250 VAC
External Dimensions (Including Amp, Drivers and Terminals (H x W x D)) 321 x 321 x 364 mm (125/8 x 125/8 x 145/16")
External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D)) 366.5 x 321 x 364 mm (147/16 x 125/8 x 145/16")
Weight (unpacked) 13.4 kg (29 lb 9 oz)
Sold As Single Unit
