Mission LX Connect Wireless Speaker System Lux Black
Innovative Wireless technologies and combining it with the award winning LX MKII Series Speakers. This Mission LX Connect offers a new level of convenience and performance that changes the game for all wireless speaker systems.
Immersive Stereo Quality
The Speaker System is based on Mission LX2 MKII speakers, with High-Power Digital Amplification modules that offer 60w from each cabinet. Following the LX MKII series design and performance. Mission DiaDrive bass units offer superior control of the low frequency diaphragm while refined high frequency performance and cabinet bracing system further help create a loudspeaker system that outperforms.
Advanced Wireless System
This LX Connect Hub, acts as the central console for all of your muasic sources. This LX Connect Hub is high specification, standalone audio hub in its own right. With this dedicated HDMI ARC connection to bring high fidelity, trule wireless performance for TV, movies and games, Bluetooth aptX connections for wireless streaming of hi-resolution audio from tablets and smartphones.

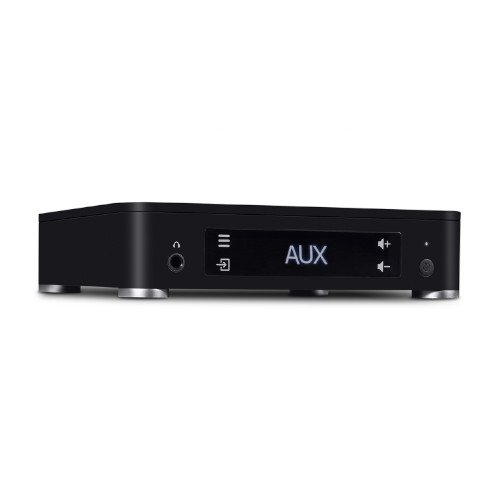

Advanced Wireless Hub
Unlike other wireless and active speakers where controls and inputs are often placed awkwardly on the back panel, this LX Connect Hub is easily controlled via the interface and OLED display for more convenience with a included remote.
This has high performance USB DAC and it is equipped with ESS Sabre32 ES9018K2M Reference DAC and hi-fi grade headphone amplifier that will outperform most dedicated headphone amp/ DAC Combinations in this price point alone.
Luxury Lifestyle Finish
Sporting Fantastic New LUX Black and LUX White, along with classic Walnut Pearl Finish Options for the speakers, the Mission LX Connect is a wireless speaker that represents ana presented audio experience for hi-fi loves, gamers and digital music enthusiasts.
Specifications
General Description Wireless Speaker System
Design Philosophy And Core Technology 5.8GHz Wireless Uncompressed
Technology
DAC ESS Sabre 9018
Support Music And Movie Mode
Headphone Amplifier
Support USB Upgrade
Pre Delay Setting
Roon Tested
Touch Control
Analogue Input RCA (AUX)
Digital Input OPT, COAX, PC USB, Bluetooth, AV Audio
Analogue Output RCA Pre Out
Pre Amplifier (hub)
Input Sensitivity 300mV (AUX IN, volume = MAX)
Input Impedance 13K (AUX IN)
Variable Output Voltage 0 – 3.2V
Output Impedance 100 ohm
Frequency Response 20Hz-20kHz (+/-0.3dB)
Signal-to-noise Ratio > 100dB (AUX IN, A-weighted)
(S/N) > 110dB (digital Inputs, A-weighted)
Total Harmonic Distortion < 0.001% (digital sources )
< 0.005% (analogue sources)
Sampling Rate 24bit - 192kHz (OPT, COAX)
32bit - 384kHz (USB, PCM)
2.8M for DSD64, 5.6M for DSD128,
11.2M for DSD256 (USB, DSD)
Digital Filters Fast Roll-off, Slow Roll-off, Minimum Phase

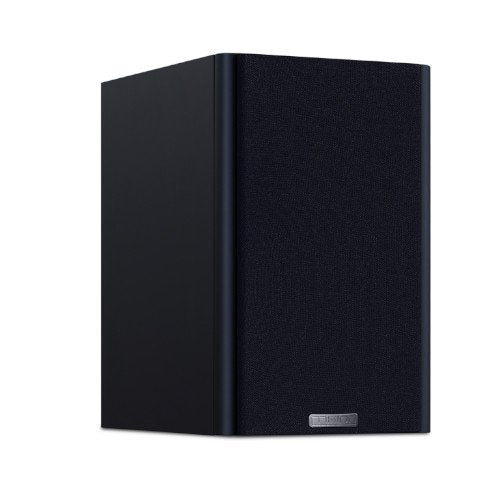

Active Speakers
Enclosure Type Bass Reflex
Transducer Complement 2-way
Drive Unit
Bass Unit 130mm Composite Fibre Cone
Treble Unit 25mm Microfibre Dome
AV Shielded No
Rated Power Output 60W
Peak Power Output 100W
Peak SPL 99dB
Frequency Response (+/-3dB) 58Hz – 20kHz
Bass Extension (-6dB) 52Hz
Crossover Frequency 3.2kHz
Wireless Reception Distance 20m
Cabinet Volume 8.2L
Dimensions Speaker
Height (on feet) 305mm
Width 200mm
Depth (with terminals) (250+15)mm
Hub
Height (on feet) 55mm
Width 225mm
Depth (with terminals) 231mm
System
Carton Size 545 x 440 x 400mm
Net Weight 6.55kg x 2 (speakers)
1.75kg (hub)
Gross Weight 17.8kg
Finish Walnut Pearl / Lux White / Lux Black (speakers); Black (hub)
Power Requirements 100-240Vac (50/60Hz)
