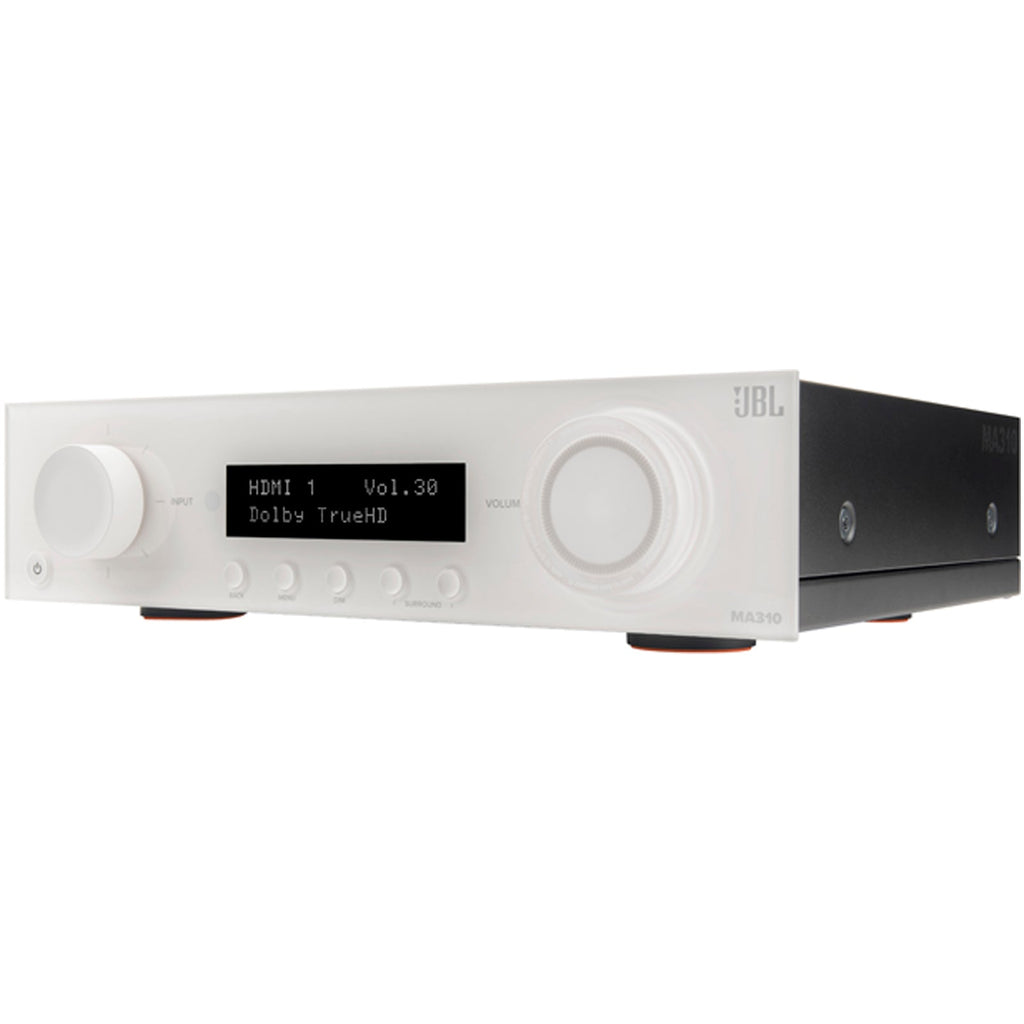

JBL MA310: Elevating Your Audio Experience
Bring your music and movies to life with the JBL MA series AV receivers. This lineup consists of five models, each offering fundamental connectivity and the latest features for both video and music. As you move up the line, you'll find additional premium features that elevate your entertainment experience.
All models are designed for high performance sound, featuring Class D amplification to power all channels, Dolby and DTS decoding, and high resolution 192kHz 24-bit DACs. The MA Series ensures premium audio quality and ease-of-use, providing flexibility with a wide range of input sources and listening modes. Enjoy your content quickly and easily with minimal steps, all from a product with a unique and modern appearance.
Don't let poor acoustics ruin your sound experience. The free EZ Set EQ app offers simple room equalization for optimized sound quality across all AVR models. The calibration process, which collects room acoustics data for each speaker group, takes less than 2 minutes and can be done by anyone using an iOS or Android mobile device.
Enhance your home entertainment with the JBL MA series AV receivers, where high performance meets ease-of-use and modern design.
Features and Benefits
Stunning Audio and Video Performance
- High-performance 5.2, 7.2, & 9.2-channel AV receiver
- Delivers stunning realism with the latest 4K & 8K video for the ultimate home cinema experience
Intuitive Setup with Modern Design
- Minimalist modern design for easy setup
- Seamless integration with smart TVs, gaming consoles, streaming services, cable boxes, and more
- 4 & 6 HDMI inputs and 1 & 2 outputs, plus eARC
High-Performance Immersive Surround Sound
-
Dolby Atmos and DTS
decoding, supporting up to 7.1.2 or 5.1.4 channel configurations
- Brings both music and movies to life with true high fidelity
Bluetooth and Network Streaming
- Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)
On-Screen Setup and Operation
- On-screen display for easy system setup and operation (via HDMI)
Powerful Amplification
- Five, seven, and nine channels of low noise Class D amplification for real-world power to all channels
EZ Set EQ
-
EZ Set EQ provides easy-to-use room equalization for optimized sound quality
Technical Specifications:
| Feature |
Specification |
| Video Features |
|
| HDMI Audio Return Channel |
Yes |
| 4K HDMI input connectors |
4 (HDMI 2.0, HDCP 2.1 up to 4K/60Hz Ultra HD) |
| HDR |
Yes |
| Audio Features |
|
| Pure Direct |
Yes |
| EZ Set EQ |
Yes |
| DA converter |
192kHz/24-bit |
| Channels |
5.2 |
| Rated Power @ 8Ω |
60 W RMS (1kHz, 2 channels driven, 0.5% THD max) |
| Rated Power @ 4Ω |
100 W RMS (1kHz, 2 channels driven, 0.5% THD max) |

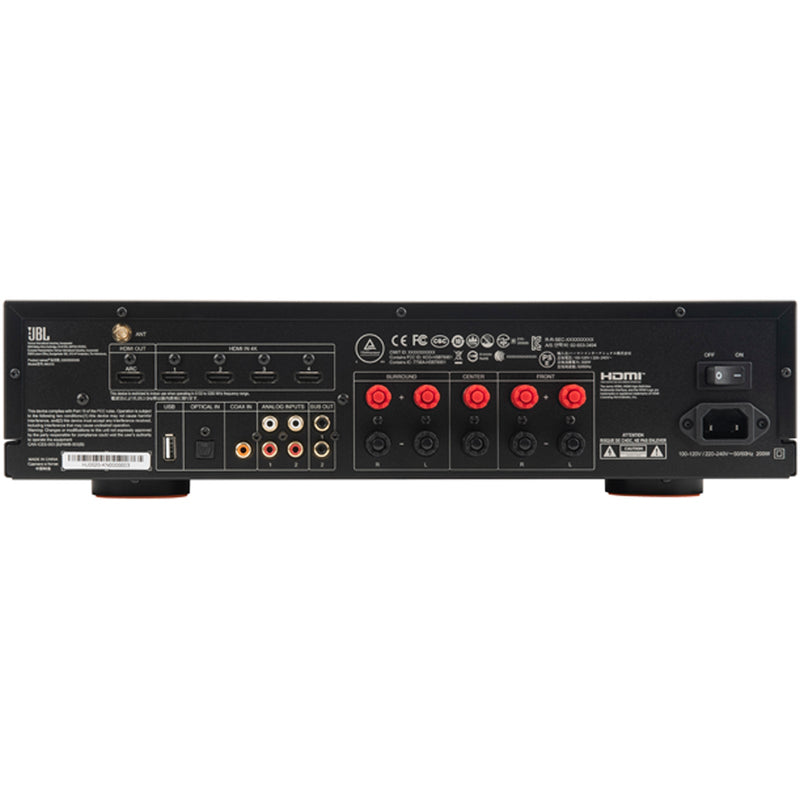

| HDMI Input/Output |
4 inputs / 1 output |
| Bluetooth receive |
Yes (v5.1, Low Energy) |
| Digital Audio Input |
1 Coax, 1 Optical |
| Stereo analog input |
2 single-ended RCA |
| Pre-Out (single ended RCA) |
Subwoofer 1, Subwoofer 2 |
| Dimension and Weight |
|
| Dimensions (H x W x D) |
4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm) |
| Weight |
11.3 lb (5.1 kg) |
What’s in the Box
JBL MA310
1x IR Remote
2x AAA batteries
1x Bluetooth antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet
