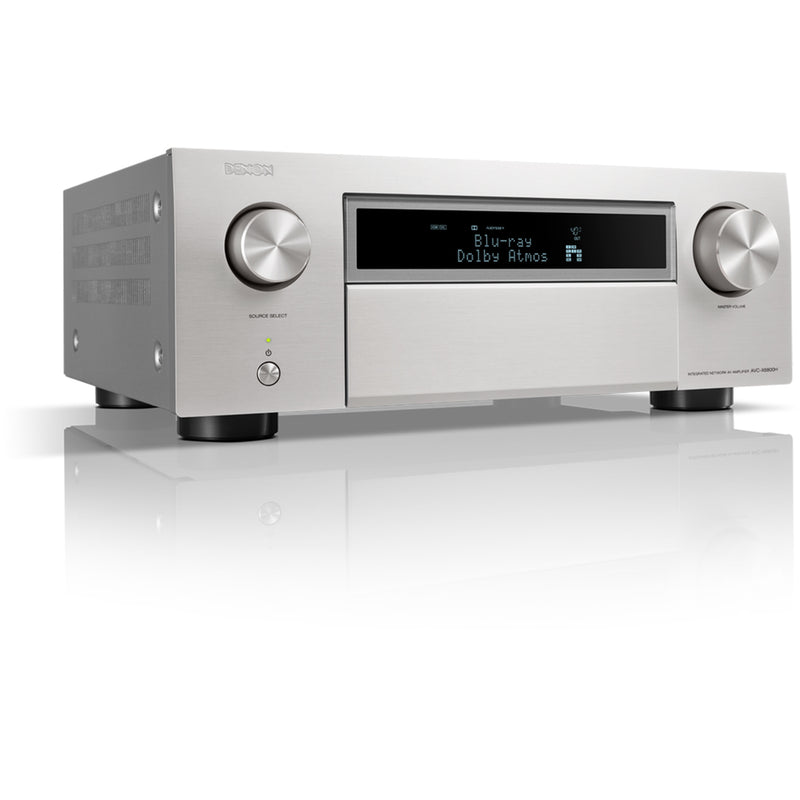

Denon AVC-X6800H 11.4ch 8K AV Amplifier with 3D Audio Dolby Atmos HEOS Built-in Silver
Introducing the Denon AVC-X6800H 11.4-Channel AV Amplifier - Elevate Your Audio Experience
Unleash the power of Japanese craftsmanship with the Denon AVC-X6800H, an 11.4-channel AV amplifier designed and manufactured in Japan. Experience a superior audio journey with features like Dolby Atmos, DTS:X, IMAX Enhanced, Auro 3D, and HEOS® Built-in for seamless wireless music streaming.
Monolithic Power Amplifier Construction
Feel the impact of a powerful 11-channel Monolithic Power Amplifier construction, delivering a high-power performance of 205 watts per channel. The sophisticated design with a single board per amplified channel minimizes interference and crosstalk, ensuring optimal channel separation, clarity, and detailed sound.
Immersive 3D Audio with Dolby Atmos and DTS:X
Upgrade your home theater with Dolby Atmos, experiencing a fully immersive 3D audio sensation. The AVC-X6800H supports height speakers and Dolby Surround upmixer, creating a lifelike audio environment. DTS:X provides multidimensional audio for a realistic sound experience, with DTS Neural:X upmixer enhancing immersion in legacy content.
IMAX Enhanced and Auro 3D for Premium Entertainment
Enjoy a premium at-home entertainment experience with IMAX Enhanced, setting new standards in imaging, sound, scale, and clarity. Auro 3D elevates your home theater with three-dimensional sound, turning your audio-visual collection into an extraordinary experience.
HDMI Connectivity with ARC/eARC for Seamless Integration
Stay ahead with HDMI connectivity supporting ARC and eARC for a simplified TV audio setup through a single HDMI connection. Benefit from 8K/HDCP 2.3 support, pristine 8K picture quality, and brilliant color reproduction from HDR 10+. Dolby Vision compatibility enhances HDR imaging, bringing extraordinary color, contrast, and brightness to your screen.
Next-Generation Gaming Experience
Step into next-gen gaming with Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM), ensuring a smooth and lag-free gaming experience when connected to compatible gaming devices.
HEOS Built-in for Seamless Wireless Music Streaming
With HEOS Built-in, wirelessly stream your favorite music across compatible HEOS components, offering a multi-room music experience. Control everything with the HEOS app, playing the same or different songs in various rooms.
High-Resolution Audio and Setup Assistant
Discover the fidelity of high-resolution audio tracks with support for various formats. The award-winning Denon Setup Assistant simplifies the setup process, ensuring clear instructions for connecting speakers, performing measurements, and connecting source devices.
Audyssey Premium Suites for Optimal Room Correction
Benefit from Audyssey MultEQ XT32 and SubEQ HT for optimal room correction. Use the Audyssey MultEQ Editor app for detailed tuning and customization, gaining total control over your home cinema's sound.
Dirac Live Upgradeability and Dual Speaker Preset Memory
Upgrade with Dirac Live Room Correction and Dirac Live Bass Control for advanced room impact reduction and enhanced speaker performance. Store two speaker settings with Dual Speaker Preset Memory, optimizing your listening experience based on content or environment.
Three-Source, Three-Zone Flexibility
Experience flexibility with three-source, three-zone support, driving different zones with different sources simultaneously. Connect external amplifiers for even more customization and use one HDMI output as a second A/V zone.
13.4 Channel Processing and 11 Channel Amplification
With external two-channel amplification, configure a 13-channel speaker setup for unparalleled flexibility and an elevated immersive audio experience.
AL32 Processing Technology for Superior Audio Reproduction
Experience optimum clarity with AL32 Processing technology, suppressing noise associated with D/A conversion. AL32 Processing Multi-Channel applies this technology to all channels and input sources, bringing out delicate nuances in your music.
Subwoofer Outputs and Settings for Perfect Bass
Immerse yourself in accurate bass with up to four subwoofer outputs. Tweak settings for even dispersion, ensuring powerful, room-filling bass without peaks or dips.
Pre Amplifier Mode for Enhanced Signal Path
Transform your Denon AV amplifier into a perfect AV preamplifier with Pre Amplifier Mode. Disconnect internal amplifiers for a cleaner signal path and more tolerance in clipping levels.
Elevate your audio experience with the Denon AVC-X6800H, a masterpiece of Japanese engineering delivering unparalleled audio quality and cutting-edge features.
Technical Specifications
Multichannel Surround
-
DTS HD Master / DTS:X / DTS:X ProYes / Yes / Yes
-
DTS Neo:6 / DTS Neural:XNo / Yes
-
DTS Virtual:XYes
-
IMAX EnhancedYes
-
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos MusicYes / Yes / Yes / Yes
-
Dolby ProLogic Il / Dolby SurroundNo / Yes
-
Auro 3DYes
-
360 Reality Audio / MPEG HYes / Yes
-
Audyssey DSXNo
-
Multichannel StereoYes
-
Max. number of processing (preamp) channels13.4
Sound Enhancements
-
Mono Block Power Amp ConstructionYes
-
Discrete Power AmplifierYes
-
D.D.S.C. HD DigitalYes (32 bit)
-
Pure DirectYes
-
Gold Plated RCA TerminalsYes
-
Clock Jitter ReducerYes
-
Alpha ProcessingAL32 Processing Multichannel
-
AudysseyMultEQ XT32
-
Audyssey Dynamic EQ / Dynamic VolumeYes / Yes
-
Audyssey LFCYes
-
Dirac Live upgradabilityYes
-
Compressed Audio RestorerYes
Network
-
Media ServerYes
-
HEOS Wireless Multi-Room TechnologyYes
-
Bluetooth Re-transmit for Bluetooth headphonesYes (With volume control)
-
Alexa / Google Voice Assistant / Apple HomePodYes / Yes / Yes
-
Lossy Formats: MP3 / WMA / AACYes / Yes / Yes
-
Lossless Formats: FLAC / ALAC / WAVYes / Yes / Yes
-
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24Yes / Yes / Yes
-
DSD Audio StreamingYes (2.8/5.6MHz)
-
FLAC HD 192/24Yes
-
WAV 192/24Yes
-
ALAC 192/24Yes
-
Gapless playbackYes (FLAC, WAV, ALAC ,DSD)
-
AirPlay Audio StreamingYes (AirPlay2)
-
Internet RadioYes (TuneIn)
-
Spotify ConnectYes (connect)
-
PandoraYes
-
SiriusXMYes
-
Other Streaming ServicesAmazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
-
Roon TestedYes
-
HEOS App ControlYes
-
Compatible with Remote APP for Smart PhonesDenon AVR Remote
-
Compatible with Remote APP for TabletsAndroid / iOS / Amazon Kindle
-
Ethernet PortsYes
-
Wi-FiYes
-
BluetoothYes
HDMI
-
HDMI Inputs: Back, Front7 / No
-
HDCP2.3 supportYes
-
HDMI Outputs: Main, Zone2 / 1
-
Video conversion Analog -> HDMI Yes
-
HDMI to HDMI Scaling1080P/4K to 8K
-
HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz ABYes / Yes
-
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out7 / 2 (up to 40Gbps)
-
HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevueYes / Yes / Yes / Yes / No
-
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDRYes / Yes / Yes / Yes / Yes
-
ALLM (Auto Low Latency Mode) Pass-Through for GamingYes
-
Variable Refresh Rate / Quick Flame Transport / Quick Media SwitchingYes / Yes / No
-
3D Signal Pass-ThroughYes
-
8K Signal Pass-Through, Scaling, GUI OverlayYes / Yes / Yes
-
4K Signal Pass-Through / Scaling / GUI OverlayYes / Yes / Yes
-
HDMI Pass-Though in Standby ModeYes
-
CECYes
-
DSD Audio capabilityYes
-
Audio Return ChannelARC, eARC
-
Auto LipSyncYes
Multi-room / CI
-
Multi-Room Zones3
-
Zone Audio Source: HDMI / Opt, Coax / Network, USB / AnalogYes (2ch) / Yes (2ch) / Yes / Yes
-
Zone Audio Output: Speaker / Pre-OutYes / Yes
-
Zone HDMI output from HDMI sourceYes
-
IP Control / RS232 Control / Web Control / App ControlYes / Yes / Yes / Yes
-
Remote In / OutYes / Yes
-
DC Trigger output3
-
HDMI DiagnosticsYes
Others
-
Auto speaker setup by microphoneAudyssey MultEQ XT32 Dirac Live (upgrade)
-
Front Display2 Line FLD
-
Graphic User Interface - GUIModern HD GUI
-
GUI Languages3
-
Setup AssistentYes
-
Quick Select Plus, Quick SelectYes / No
-
Firmware Update by Network / USBYes / Yes
-
Variable cross overYes
-
Optimized Bass RedirectionYes
-
Bass SyncYes
-
ECO ModeYes
-
Auto Power OffYes
-
Sleep TimerYes

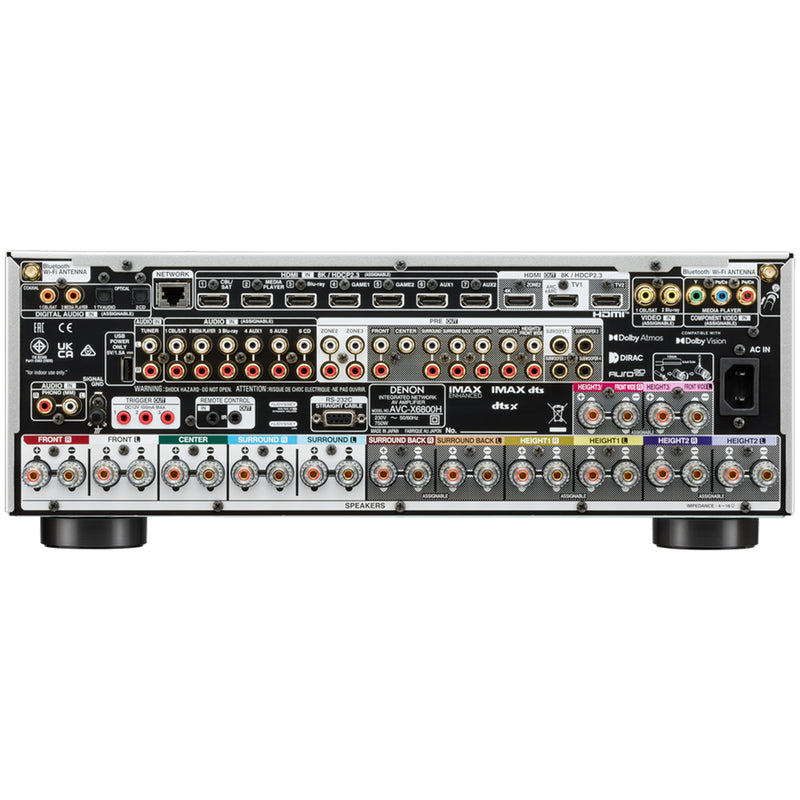

Inputs Outputs
-
VIDEO
-
Composite In / Out2 / No
-
Component In / Out1 / No
-
HDMI In / Out7 / 3
-
Multi-Room Video Out: Video / HDMINo / Yes
-
AUDIO
-
Analog In, Out6 / No
-
Phono (MM) InYes
-
Digital in: Optical/Coaxial2 / 2
-
Multi-Room Out: Analog/Digital2 / No
-
Multichannel Pre-outYes (13.4)
-
Subwoofer Out4 (independent)
-
OTHER
-
Speaker Terminal: Gold-Plated Screw / Regular ScrewYes / No
-
Number of Speaker Terminals13
-
Speaker A / Bassignable
-
Bi-amp driveassignable
-
Multi-Room Speaker Terminalassignable
-
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBNo / No / No / No / Yes
-
USB Audio / Made for iPod / Made for iPhoneYes / No / No
-
USB Power Supply on Rear PanelYes
-
AM/FM TunerYes
Specifications
-
Number of Power Amps11
-
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)140 W
-
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)175 W
-
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)250 W
General
-
Metal Front PanelYes
-
System Remote ControlRC-1256
-
Pre-programmed / Learnable / LCD DisplayYes / No / No
-
Power Consumption in W750
-
Power Consumption No-Sound (ECO On / Off) in W65W / 110W
-
Standby Consumption in W0.1
-
CEC Standby Consumption in W0.5
-
Network Standby Consumption in WLess than 2.0
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
【 w/o Antenna :(W x D x H) in mm】
17.1 × 15.3 × 6.6
(17.1 x 15.3 x 9.3)
(17.1 x 14.9 x 6.6)
-
Carton Dimensions (Packaging) (W x D x H) in Inches)20.9 x 18.3 x 11.9 (in)
-
Weight in LBS34.4
-
Weight in LBS (Packaging)40.1
-
Power SupplyAC 120 V, 60 Hz
-
Speaker Impedance4–16Ω/ohms
-
Pre-Amplifier Section
-
Input Sensitivity200 mV
-
Frequency Response10 Hz–100 kHz — +1, –3dB (Direct mode)
-
S/N Ratio102dB (IHF-A weighted, Direct mode)
-
FM section
-
Tuning Frequency Range87.5–107.9 MHz
-
AM section
-
Tuning Frequency Range520 kHz–1710 kHz
-
What's in the Box: Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
