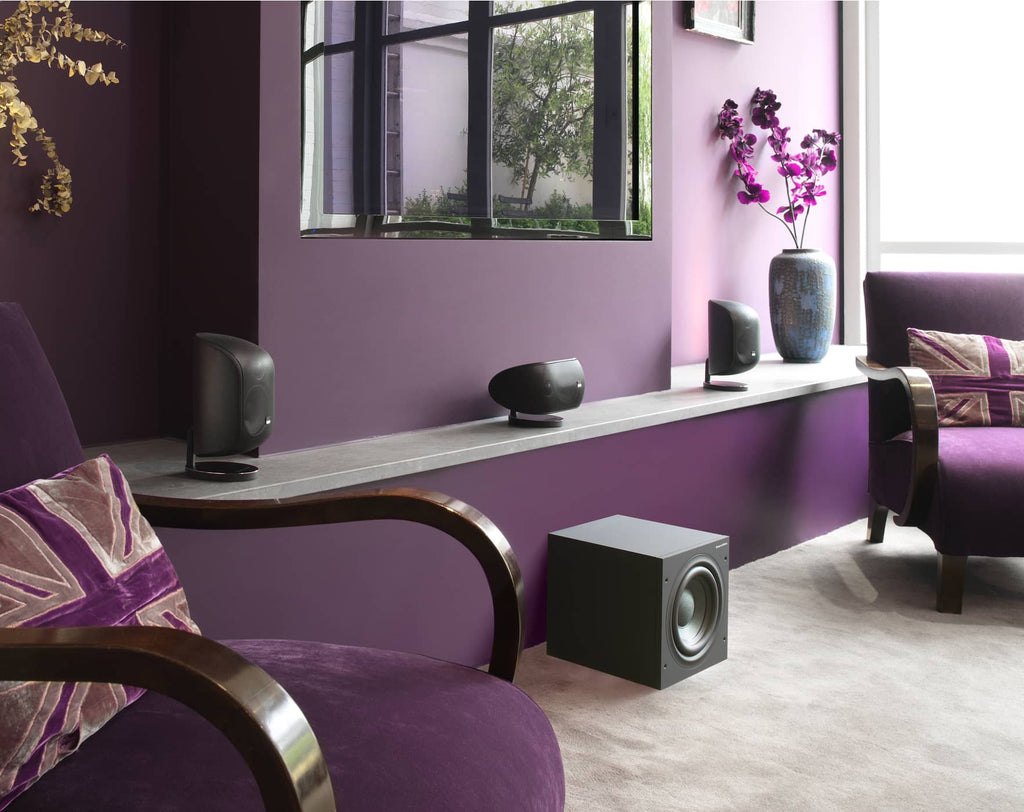

Bowers & Wilkins Mt-50 Home Theatre System Black

Bowers & Wilkins MT-50 Home Theatre System

With going with Ultra HD and want sound to match, bringing together the sleek M-1  speakers and compact but powerful ASW608 that ensures that Bowers & Wilkins expertise will make your movies magic within any room.

Sleek, Versatile Satellites

With the little M-1 Speakers they will fit almost anywhere in even the smallest room, you can also wall-mount them

Hideaway Subwoofer

The MT-50’s ASW608 Subwoofer may have room shaking punch, but it’s small enough to hide away anywhere

Made to Match

Every Element of the system, from the M-1 Speakers to the subwoofer, has been designed to combine to thrilling effect.

Small Speakers – Big Sound

Combining Clean, Crisp M-1 Speakers with powerful weighty ASW608 Subwoofer guarantees an immersive, thrilling cinema experience.

Designed to be discreet

Every Element of the MT-50 is aimed at making it easy on the eye, from the choice of white or black finishes to the clever way the cables are hidden away in the structure of the speakers and their stands.

Nautilus Inside

The same Nautilus tapered tube technology you'll find in our flagship speakers is also used in the MT-50's little M-1 speakers, guaranteeing precision and clarity for all that dialogue and sound effects.

Built to shake the room

Compact it may be, but the ASSW608 subwoofer used in the MT-50 system packs a mighty punch, thanks to an advanaced composite driver and serious powerful amplifier.

Specifications

Technical feature

Nautilus™ tube loaded tweeter with aluminium dome Woven glass fibre cone bass / midrange

Description

2-way vented-box system

Drive Units

1x 25mm (1in) aluminium dome high-frequency

1x 100mm (4in) woven glass fibre cone bass / midrange

Frequency range

-6dB at 55Hz and 50kHz

Frequency response

64Hz - 23kHz ±3dB on reference axis

Dispersion

Within 2dB of reference response

Horizontal: over 60º arc

Vertical: over 10º arc

Sensitivity

85dB spl (2.83V, 1m)

Harmonic distortion

2nd and 3rd harmonics (90dB, 1m)

<1% 120Hz - 30kHz

Nominal impedance

8Ω (minimum 4.0Ω)

Crossover frequency

4kHz

Recommended amplifier power

20W - 100W into 8Ω on unclipped programme

Max. recommended cable impedance

0.1 Ω

Dimension

Height: 248mm (9.8in)

Width: 114mm (4.5in)

Depth: 162mm (6.4in)

Mounted on table stand

Net weight

2.3kg (5lb)

Finishes

Cabinet: Matte Black or Matte White

Grille: Matte Black or Matte White perforated steel to match

ASW608 Specs

Description

Active closed-box subwoofer system

Drive unit

ø200mm (8 in) paper/Kevlar® cone long-throw

Frequency range

-6dB at 23Hz and 25/140Hz adjustable (EQ at A)

Frequency response

±3dB 32Hz – 40/140Hz adjustable (EQ at A)

Bass Extension

-6dB at 23Hz (position A)

-6dB at 28Hz (position B)

-6dB at 36Hz (position C)

Amplifier

Power output: 200W

Rated power consumption:

40W/ 0.5W standby

Input impedance:

33kW

Signal / noise:

>90dB

Functions:

Volume level – line in

Volume level – speaker in

Low-pass filter frequency – line in only

Low-pass filter bypass

Bass extension

Bass roll-off alignment

Auto sense on/standby

Phase switch

Inputs:

Line In (RCA Phono)

Speaker in (Binding post)

12v trigger (3.5mm jack)

Low-pass filter

Active 4th-order, variable cut-off frequency

Dimensions

Height: 260mm (10.2 in) not including feet

Width: 260mm (10.2 in)

Depth: 330mm (13 in) including grille and controls

Net weight 8.85kg (19.5 lb)
