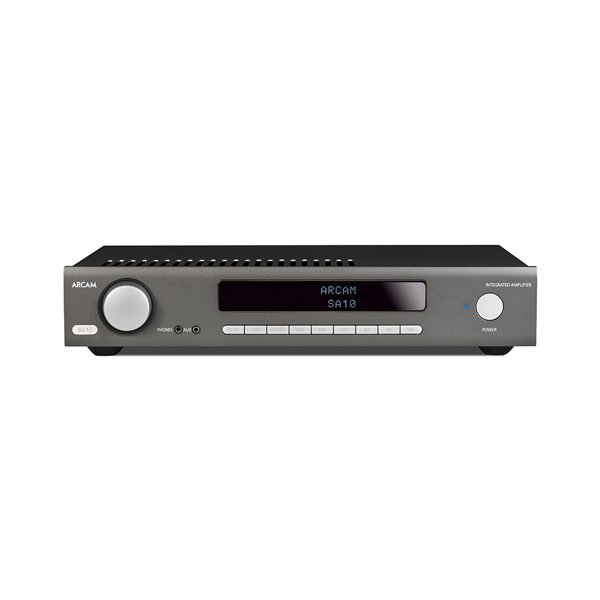

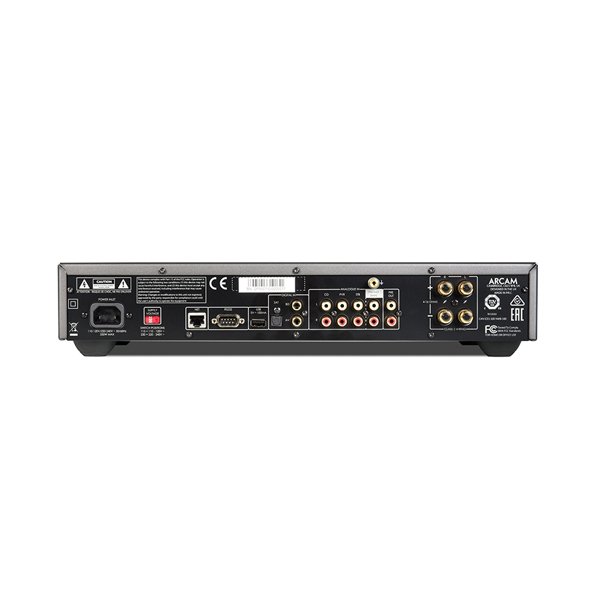

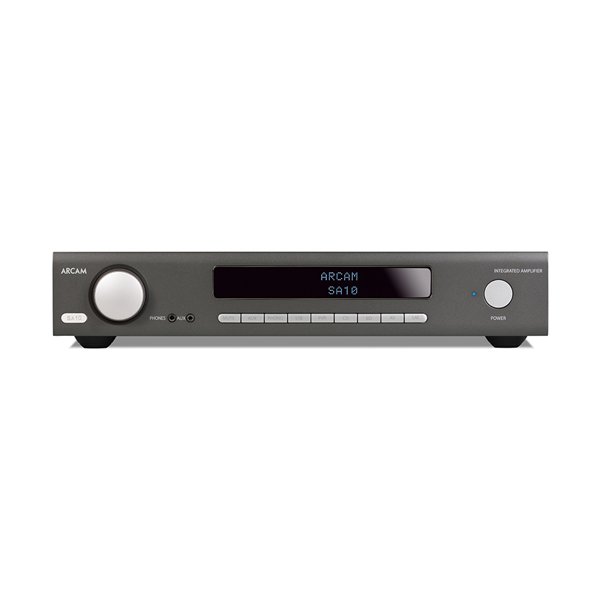

Arcam SA10 Class AB Integrated Amplifier
Extremely efficient class A/B amplification
50W of power per channel
5 analogue inputs including phono
3 digital inputs
32-bit DAC,Sabre ESS9016K2M
Full I/P control
Total harmonic distortion + noise = 0.003%
Continuous power output (0.5% THD), per channel
Both channels, 8Ω, 20Hz—20kHz 50W
Both channels, 4Ω, at 1kHz 85W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.003%
Analogue Inputs
Phono (MM) cartridge:
Input sensitivity at 1kHz 5mV
Input impedance 47kΩ + 100pF
Frequency response (ref. RIAA curve) 20Hz – 20kHz ± 1dB
Signal/Noise ratio (A-wtd) 50W, ref. 5mV input 80dB
Overload margin, ref. 5mV at 1kHz 21dB
Line Inputs:
Nominal sensitivity 1V
Input impedance 10kΩ
Maximum input 6Vrms
Frequency response 20Hz – 20kHz ± 0.2dB
Signal/Noise ratio (A-wtd) 50W, ref. 1V input 106dB
Digital Inputs
DAC ESS9016K2M
Frequency response 20Hz - 20kHz ± 0.05dB
Total harmonics distortion + Noise 0.0007%
Signal/Noise ratio (A-wtd) 115dB
Supported sample rates Optical 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
Coaxial 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit depth 16-bit – 24-bit
Pre-amplifier output
Nominal output level 630mV
Output impedance 230Ω
Headphone output
Maximum output level into 600Ω 5Vrms
Output impedance 1Ω
Load range 16Ω – 2kΩ
General
Mains voltage 110–120V or 220–240V, 50–60Hz
Maximum power consumption 350W
Dimensions W x H x D (including feet, control knob and speaker terminals) 433x87x310mm
Weight (net) 8.4kg
Weight (gross) 10.7kg
Supplied accessories Mains leads
Remote control
2 x AAA batteries
