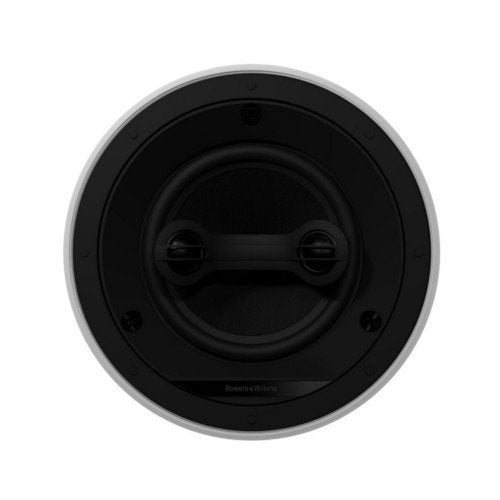

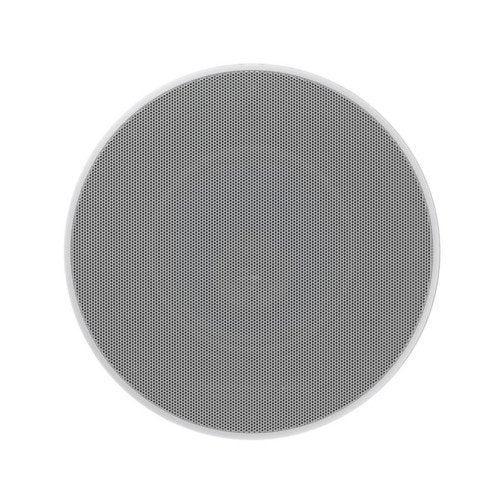

Bowers & Wilkins CCM664SR Ceiling Speaker Single
With the CCM664SR it is a dual, two way ceiling speaker featuring a 1500mm woven glass fibre cone bass/midrange driver and two offset soft dome tweeters. The Twin Voice coil bass/midrange driver and tweeters allow a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel. It includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel incorporating QuickDogs and plug and play functionality it is quick and easy to install.
Specifications
Description 2-way dual channel in-ceiling system
Drive Units 2x ø20mm (1in) soft dome tweeter
1x ø150mm (6in) black glassfibre cone bass/midrange
Frequency Range (-6dB) 48Hz – 30kHz
Recommended Amp Power 25 – 80w (per channel)
Sensitivity SPL (2.83V, 1m) 82dB (per channel)
88dB (both channels driven)
Impedance Nominal (min) 8Ω (4Ω) (per channel)
Frame diameter 240mm (9.5in)
Cut-out diameter 202mm (8in)
Depth behind surface 133mm (5.2in)
Protrusion 4mm (0.2in)
Pre-mount Kit C6
Back Box 6C
